Terminal.Gui-适用于.NET的跨平台终端UI工具包

程序员有二十年 2024-05-04 19:30:46

Terminal.Gui

Terminal.Gui 是一个使用 C# 开发的基于控制台的工具库。这个框架的设计目的是, 在单色终端和支持鼠标的现代彩色终端上, 开发人员也可以非常轻松地进行开发并运行程序。

Terminal.Gui 是跨平台的, 它适用于 Windows、Linux 和 MacOS。

如何使用?

在 .NET Core 项目中安装, 可以使用 dotnet CLI 或者 Nuget。

dotnet add package Terminal.Gui

下面是一个简单的示例:

using Terminal.Gui;class Demo{static int Main() { Application.Init();var n = MessageBox.Query(50, 7,"Question", "你喜欢这个控制台应用吗?", "Yes", "No"); Application.Shutdown();return n; }}

运行程序后,控制台显示内容如下:

这个代码进行提示并返回一个整数值,它取决于用户选择的值(Yes,No,或者不选择去按 ESC 键)。

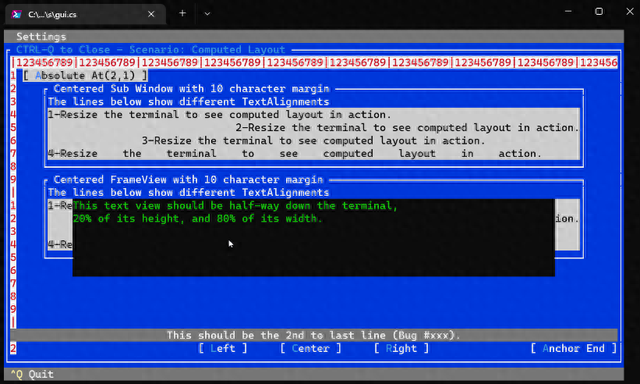

还可以通过组合所包含的各种视图来创建更有趣的用户界面。

下面是一个使用用户名和密码进行登录的一个示例。

// A simple Terminal.Gui example in C# - using C# 9.0 Top-level statementsusing Terminal.Gui;Application.Run<ExampleWindow> ();System.Console.WriteLine ($"Username: {((ExampleWindow)Application.Top).usernameText.Text}");// Before the application exits, reset Terminal.Gui for clean shutdownApplication.Shutdown ();// Defines a top-level window with border and titlepublic ExampleWindow : Window {public TextField usernameText;public ExampleWindow () { Title = "Example App (Ctrl+Q to quit)";// Create input components and labelsvar usernameLabel = new Label () { Text = "Username:" }; usernameText = new TextField ("") {// Position text field adjacent to the label X = Pos.Right (usernameLabel) + 1,// Fill remaining horizontal space Width = Dim.Fill (), };var passwordLabel = new Label () { Text = "Password:", X = Pos.Left (usernameLabel), Y = Pos.Bottom (usernameLabel) + 1 };var passwordText = new TextField ("") { Secret = true,// align with the text box above X = Pos.Left (usernameText), Y = Pos.Top (passwordLabel), Width = Dim.Fill (), };// Create login buttonvar btnLogin = new Button () { Text = "Login", Y = Pos.Bottom(passwordLabel) + 1,// center the login button horizontally X = Pos.Center (), IsDefault = true, };// When login button is clicked display a message popup btnLogin.Clicked += () => {if (usernameText.Text == "admin" && passwordText.Text == "password") { MessageBox.Query ("Logging In", "Login Successful", "Ok"); Application.RequestStop (); } else { MessageBox.ErrorQuery ("Logging In", "Incorrect username or password", "Ok"); } };// Add the views to the Window Add (usernameLabel, usernameText, passwordLabel, passwordText, btnLogin); }}

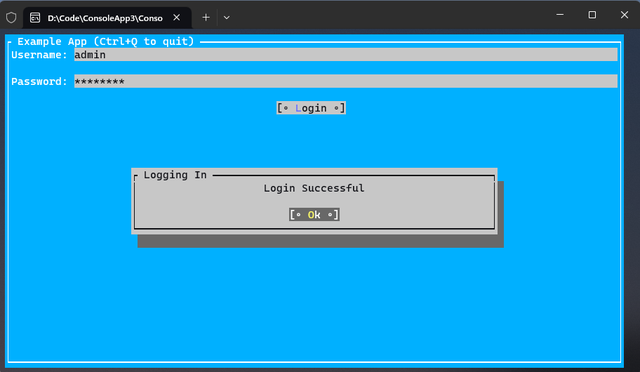

运行程序后,输入 admin 和 password,页面显示如下

应用和扩展

Terminal.Gui 的社区非常活跃,已经有很多基于它开发的应用。

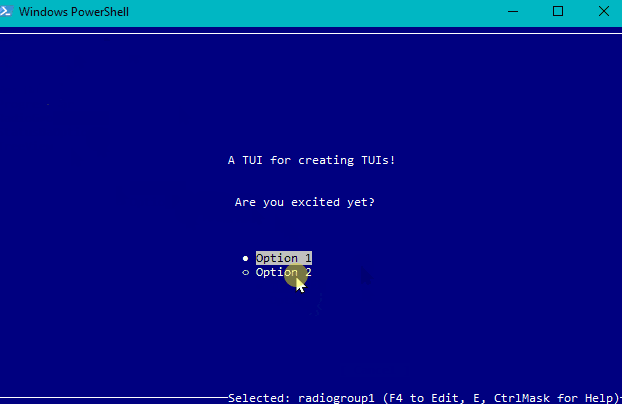

Terminal Gui Designer

TerminalGuiDesigner 使用 CodeDom 和 Roslyn 构建,可让您通过拖放来创建复杂的视图,就像您熟悉和喜爱的 WinForms 设计器一样。

Dotnet Dump 分析器

这是一个基于gui.cs 的小型ui,可以和 dotnet dump 一起使用,它能够列出所有受支持的 SOS 命令的输出。

项目地址

https://github.com/gui-cs/Terminal.Gui
